Batts were made to fit the lumber, and the R‑value is just whatever that batt measures at that thickness. Nobody picked R‑19 or R‑38 as a target. A 2×4 wall is 3½ inches deep, so the batts for it are 3½ inches thick, and at that thickness fiberglass measures R‑11, R‑13, or R‑15 depending on how dense it is. A 2×6 is 5½ inches deep, and its batts come out at R‑19 and R‑21. Attic numbers are layers added together: two R‑19s make R‑38. Then everything else copied the batts. Codes wrote their requirements in the R‑values you could already buy, and federal labeling rules make bags of blown insulation chart their coverage at those same numbers.1,2,3 The numbers came from the lumber.

Framing sizes and the batts made for them Drawn to scale, depth in inches. A 2x4 is 3.5 inches deep and R‑11, R‑13 and R‑15 batts are all 3.5 inches thick. A 2x6 is 5.5 inches deep; an R‑21 batt is 5.5 inches and fits, while a standard R‑19 batt is about 6.25 inches and gets squeezed to about R‑18. A 2x10 is 9.25 inches deep; the R‑30C cathedral batt is about 8.25 inches and a standard R‑30 is 9.5 to 10 inches. A 2x12 is 11.25 inches deep; the R‑38C batt is about 10 to 10.5 inches and a standard R‑38 is 12 inches. Shaded red ends show where a standard batt is thicker than the framing. LUMBER DEPTH (BROWN) VS. BATT THICKNESS (GOLD), TO SCALE thicker than the framing 2×4actual 3½″R‑11 / 13 / 152×6actual 5½″R‑21 5½″R‑19 6¼″ → ≈R‑182×10actual 9¼″R‑30C 8¼″R‑30 9½–10″2×12actual 11¼″R‑38C 10–10½″R‑38 12″ 0″2″4″6″8″10″12″
Figure 01 · The lumber came first. Actual framing depths against the listed thickness of the batts sold for them, drawn to scale.1,4,5 Wall batts match the stud. Standard R‑19, R‑30, and R‑38 batts run thicker than the framing they are usually paired with (red), which is why the denser 5½″ R‑21 and the “C” cathedral batts exist. Thicknesses vary by manufacturer.
In this field note

Four terms

R‑value is resistance to heat flow. Higher means slower heat flow under the same test conditions.6 Nominal lumber is the name, not the size: a 2×4 is actually 1½ by 3½ inches, and a 2×6 is 1½ by 5½.4 Cavity depth is the space between drywall and sheathing, which is the depth of the stud. R per inch is the R‑value divided by thickness; for fiberglass blankets it runs from about 3.0 to 4.3, mostly depending on density.5

Walls: same thickness, different density

R‑11, R‑13, and R‑15 batts are all 3½ inches thick.1 They are not different sizes. They are the same size with more or finer glass packed in. The manufacturers say it outright: “Fiber glass insulation manufacturers design batts to fit standard wood and metal framing sizes.”7

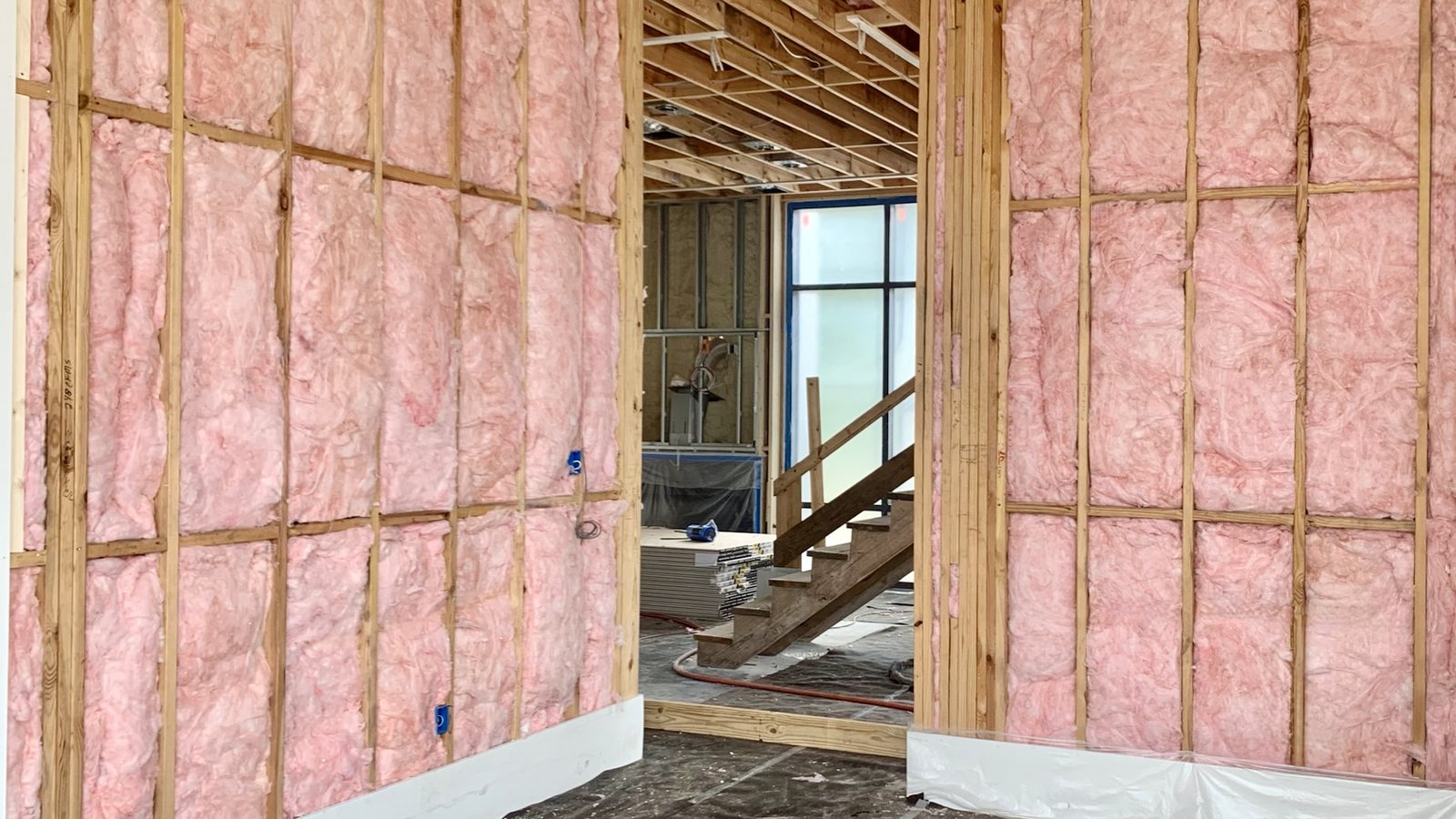

Two new-construction wood-frame walls with unfaced fiberglass batts filling every stud bay, cut to fit between rows of horizontal blocking, seen through a doorway.
Field photo 01 · The batt fits the stud. Unfaced fiberglass batts in new-construction wood-frame walls. Each batt fills its stud bay and is cut to fit between the horizontal blocking.

R‑19 is the giveaway. A standard R‑19 batt is about 6 to 6¾ inches thick, and a 2×6 is 5½ inches deep. Close the wall and the batt is squeezed to about R‑18.1 The most familiar 2×6 number was never quite what a closed 2×6 wall delivered. The 5½-inch R‑21 high-density batt exists so the wall can be filled without squeezing.1

The order of events explains a lot. The lumber came first. Fiberglass batts came next, and they had to fit the framing builders were already using. The standard test, and the R‑value itself, came after that, to measure what those batts already did. The test measures a flat sample of the material; it does not know or care what framing the batt was made for. How that test works is the subject of Field Note Nº 016.

  1. 1924First national U.S. lumber standard. Nominal sizes like “2×4” become a shared language.5
  2. 1938Owens-Corning Fiberglas is incorporated to make glass fiber, including insulation.8
  3. 1942–45The National Bureau of Standards drafts the guarded-hot-plate test; it becomes ASTM C177 in 1945.9
  4. 1945Everett Shuman proposes the R‑value as an easier-to-read number.6
  5. 1970The lumber standard sets today’s dry 2×4 at 1½ × 3½ inches; before that it was commonly 1⅝ × 3⅝.5
  6. 1979The FTC’s R‑Value Rule requires tested R‑values on insulation sold to homeowners.10
  7. 2005The FTC fixes the loose-fill coverage chart at R‑13, 19, 22, 30, 38, and 49.11

One wrinkle in the timeline: the 3½-inch stud is younger than the batt. Batts followed the lumber of their day, and when the dry 2×4 settled at 3½ inches, 3½ inches became the wall batt.5

Attics: the numbers add up

Above the ceiling the fit is looser. A standard R‑30 is about 9½ to 10 inches and an R‑38 about 12 inches, a little more than 2×10 and 2×12 joists.1 An open attic floor is not a closed cavity, so that extra thickness can simply sit above the joists. In cathedral ceilings, where the batt has to fit between rafters and leave a vent space, standard batts are too thick, so manufacturers make denser R‑30C and R‑38C batts.5

The attic numbers mostly come from addition. R‑values of stacked layers add, and NAIMA’s own example is two R‑19 batts making R‑38.2

Attic batt R‑values stack as simple sums Elevation drawn to scale, thickness in inches. Single R‑19, R‑30, and R‑38 batts are about 6.25, 10, and 12 inches thick. Two R‑19 layers stacked make R‑38, the same R‑value as a single R‑38 batt. Dashed reference lines mark 2x10 and 2x12 joist depths at 9.25 and 11.25 inches. THICKNESS TO SCALE · LAYERED R-VALUES ADD ceiling 2×102×12 R‑19R‑19≈6¼″R‑30R‑30≈10″R‑38R‑38≈12″R‑19R‑19R‑19+ R‑19= R‑38
Figure 02 · Attic targets are sums of batt numbers. Thickness drawn to scale from NAIMA’s listed values; R‑30 drawn at 10″.1 R‑19 + R‑19 = R‑38 is NAIMA’s example.2

Then everything copied the batts

The code. In Climate Zone 2, where New Orleans sits, the 2021 IECC calls for an R‑49 attic and a wood-frame wall of “R13 or R0 + R10 CI.” In Climate Zone 3 the wall is “R20 or R13 + R5 CI or R0 + R15 CI.”12 Read “R13 + R5 CI” literally and it is a 2×4 batt plus a sheet of foam board outside. That is my reading, not the code authors’ stated reasoning, but the cavity numbers in the table are product numbers. Louisiana changed the attic number. When it adopted the 2021 code, effective July 1, 2023, it treated the whole state as Climate Zone 2 and amended the attic requirement down to R‑38, with R‑13 walls.13 Two R‑19s, again.

Why the FTC? The Federal Trade Commission’s job is policing unfair and deceptive selling, not building science. The 1970s energy crisis sent demand for insulation soaring.9 The FTC found sellers leaving out R‑values, exaggerating them, and overstating fuel savings, so in 1979 it issued the R‑Value Rule: tested R‑values and required disclosures on labels, fact sheets, and installer receipts.10 It is a truth-in-labeling rule. The FTC doesn’t decide how much insulation a house needs; codes do that.

Blown insulation. Loose fill has no fixed thickness. NAIMA says it “can be installed to any required R‑value by following the specification on the bag.”1 But the federal R‑Value Rule requires every loose-fill bag to chart its coverage “at R‑values of 13, 19, 22, 30, 38, and 49,” which are the batt numbers.3 When the FTC set that list in 2005, it had proposed values including R‑24, R‑32, and R‑40, and dropped them: “Some of the proposed values, such as 24, 32, and 40, have not been included in the final rule because they do not appear in the DOE recommendations.”11 So cellulose and blown fiberglass, which have no stud to fill, report themselves in stud-based numbers.

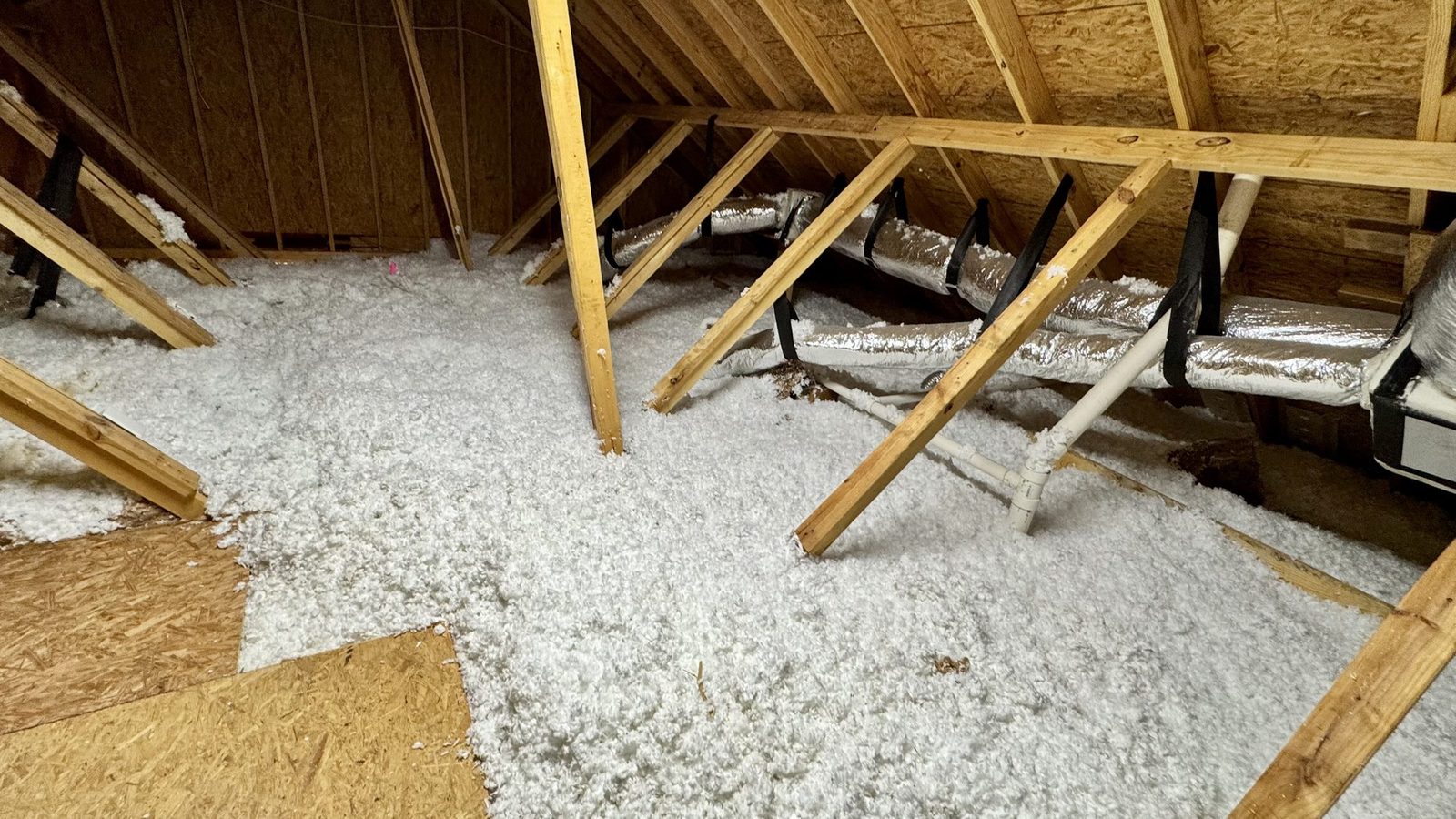

White blown fiberglass spread across an open attic floor between roof trusses, with insulated ducts overhead.
Field photo 02 · No cavity to fill. Blown fiberglass across an open attic floor. Nothing sets its depth except the coverage chart on the bag for the R‑value the job calls for.

Why not 20, 30, 40?

Because a round number wouldn’t match anything that was already made, sold, labeled, or inspected. A 3½-inch fiberglass batt rated R‑20 would need about 5.7 per inch, well past the top of the batt range.5 Round numbers are appearing now (R‑20 walls, R‑60 attics, R‑5 and R‑10 continuous insulation) because the code increasingly accepts combinations of products instead of one batt.12 Even then, the “R13” in “R13 + R5 CI” is still the 3½-inch batt.

What this means at your house

Treat the R-number on a quote as a product name. It tells you what was bought, not what got installed.

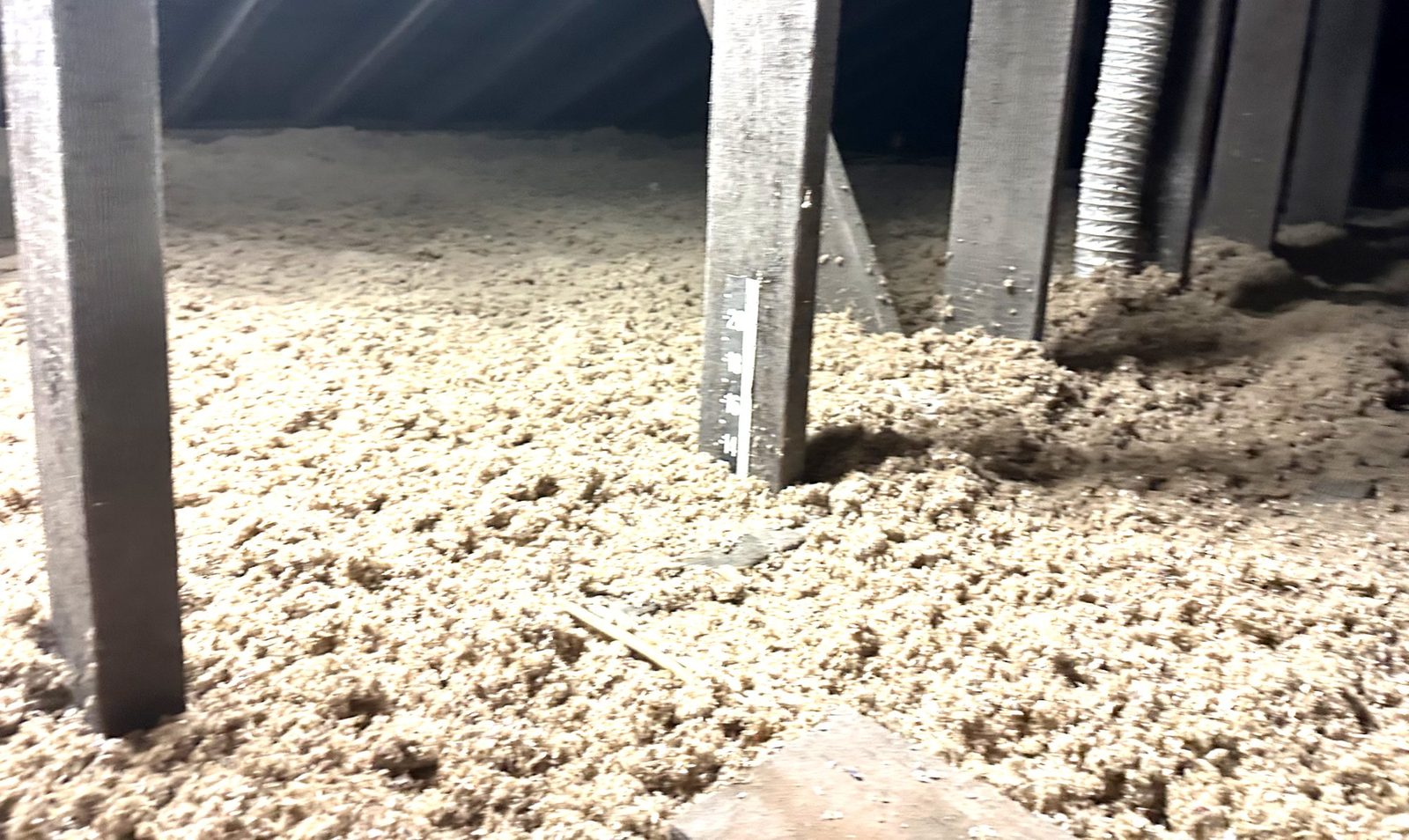

Blown cellulose in an attic with a ruled depth marker fastened to a truss, showing the installed depth.
Field photo 03 · Check the depth. Blown cellulose with a depth ruler fastened to a truss. A marker like this lets anyone compare the installed thickness against the bag chart and the installer receipt.

How the label number is measured, and what it leaves out, is covered in Field Note Nº 016.

The physics of the squeeze

OpenClose

If R‑value scaled only with thickness, squeezing a 6¼-inch R‑19 batt to 5½ inches would leave 19 × 5.5 ÷ 6.25 ≈ R‑16.7. The published figure is R‑18.1

The difference is density. Compression puts the same glass in less space, and denser fiberglass resists heat better per inch: R‑18 over 5½ inches is about R‑3.3 per inch, against about R‑3.0 at full loft. That does not license stuffing. NAIMA’s compression chart is for inspectors assessing existing work, applies only to the listed depths, and defers to manufacturer data.7

Check the per-inch math

OpenClose

Dividing NAIMA’s listed R‑values by their listed thicknesses puts every common batt at or near the 3.0–4.3 per-inch range published for fiberglass blankets.1,5 These are listed values, not measurements of any one product.

BattListed thicknessR per inchMade for
R‑113½″≈3.12×4 wall
R‑133½″≈3.72×4 wall
R‑15 HP3½″≈4.32×4 wall
R‑196–6½″≈2.9–3.22×6 wall (squeezed to ≈R‑18)
R‑21 HP5–5½″≈3.8–4.22×6 wall
R‑309½–10″≈3.0–3.2attic
R‑30C8¼–8½″≈3.5–3.6cathedral ceiling
R‑3812″≈3.2attic
R‑38C10–10½″≈3.6–3.8cathedral ceiling

The pattern: products that must fit a fixed depth (R‑15, R‑21, the “C” batts) are the dense, high-per-inch ones. Attic batts with room to loft sit near the bottom of the range. Thickness was the constraint; density was the dial.

Where the lumber sizes came from

OpenClose

A 2×4 was not always 3½ inches. Before 1970 a 2×4 was commonly 1⅝ by 3⅝. The 1970 American Softwood Lumber Standard, PS 20-70, set separate dry and green sizes, and the dry 2×4 settled at 1½ by 3½.4 Batt widths follow stud spacing the same way: 15 and 23 inches for wood framing at 16 and 24 inches on center.1

The R‑value itself is younger than most people assume. It was proposed in 1945 by Everett Shuman of Penn State’s Building Research Institute as the inverse of the U-factor, partly because a higher-is-better number was easier to sell.6

Putting it together

Every one of those numbers runs back to the same chain. The lumber set the depth. The batt was made to fill that depth. The test measured what that batt did, and the result became the name on the package: R‑11, R‑13, R‑19. Attic batt levels added those names together, codes wrote them into their tables, and federal labeling rules carried them onto bags of blown, or loose-fill, insulation, a material with no stud to fill at all.

That is the real difference between batts and blown insulation. A batt is boxed in by the framing; its R‑value was settled at the factory, and the most a cavity can do is let it reach full thickness or squeeze it. Blown insulation has no box. It can be installed to whatever R‑value the job calls for, as long as it meets the code requirement and the installed depth matches the coverage chart on the bag.1,3 R‑38 isn’t a limit; it’s just a familiar number on the chart.

So the useful question was never why the numbers aren’t round. It is whether the R‑value on the paperwork is what actually ended up in your attic or wall, and whether adding more is worth what it costs. That second question gets its own field note.

Keep reading

The R‑value on the bag came from a hot plate explains how the label number is measured. The insulation-grading field note covers installation quality, and The Performance Path Paradox covers the compliance path that does not depend on the table’s R‑values.

Sources & footnotes

  1. NAIMA. BI473, A Guide to Selecting Fiber Glass Insulation Products for Your Home. Product thickness table (R‑11, R‑13, R‑15 at 3½″; R‑19 at 6–6½″; R‑21 HP at 5–5½″; R‑30 at 9½–10″; R‑38 at 12″; R‑30C and R‑38C); standard R‑19 (6–6¾″) compressed in a 5½″ cavity “reducing its R‑value to R‑18”; 15″ and 23″ widths; loose fill “can be installed to any required R‑value.” https://insulationinstitute.org/wp-content/uploads/2016/01/BI473.pdf
  2. NAIMA. Fiber Glass Home Insulation Installation Guide (BI402), hosted by ICC. Common batt R‑values; R‑11/13/15 for 2×4 and R‑19/21/22 for 2×6; “If, for example, a ceiling requires R‑38 insulation, two layers of R‑19 batts or rolls can be used.” http://media.iccsafe.org/geo/docs/NAIMA_Insul_Installation.pdf
  3. Federal Trade Commission. 16 CFR § 460.12 — Labels. Loose-fill coverage chart required “at R‑values of 13, 19, 22, 30, 38, and 49.” https://www.law.cornell.edu/cfr/text/16/460.12
  4. InspectAPedia. Wood Framing Tables: Sizes and Spacing. Pre-1970 2×4 at 1⅝ × 3⅝; PS 20-70 American Softwood Lumber Standard and dry 2×4 at 1½ × 3½. https://inspectapedia.com/structure/Framing_Size_Spacing.php
  5. InspectAPedia (reprinted text). A Brief History of Thermal Insulation. Fiberglass blanket R‑values of 3.04 to 4.3 per inch; R‑11/13/15 for 3½″ products; standard R‑30 and R‑38 too thick for 2×10 and 2×12 rafters with a 1″ vent space; R‑30C and R‑38C. https://inspectapedia.com/insulation/History-of-Thermal-Insulation.pdf
  6. Fine Homebuilding. Understanding R‑Value. R‑value as the inverse of U-factor, proposed by Everett Shuman, director of Penn State’s Building Research Institute, after 1945. https://www.finehomebuilding.com/project-guides/insulation/understanding-r-value
  7. North American Insulation Manufacturers Association (NAIMA). Estimated R‑values for Compressed Fiber Glass Batt Insulation. “Fiber glass insulation manufacturers design batts to fit standard wood and metal framing sizes”; inspector-only use; no interpolation; manufacturer data take precedence. https://insulationinstitute.org/wp-content/uploads/2016/08/Compressed_R_values.pdf
  8. Owens Corning. “Owens Corning Celebrates 75 Years in Business” (PR Newswire, Oct. 31, 2013). Incorporation of Owens-Corning Fiberglas on Oct. 31, 1938. https://www.prnewswire.com/news-releases/owens-corning-celebrates-75-years-in-business-looks-ahead-to-a-bright-future-230067411.html
  9. National Institute of Standards and Technology. NIST SP 958, A Century of Excellence in Measurements, Standards, and Technology: “Guarded Hot Plate” chapter. Tentative method in 1942; adopted as ASTM C177 in 1945; 1980 FTC labeling ruling accelerated NBS work on a hot plate for thick insulation. https://nvlpubs.nist.gov/nistpubs/sp958-lide/010-013.pdf
  10. Federal Trade Commission. 16 CFR Part 460: Labeling and Advertising of Home Insulation, final rule notice (Oct. 2018). The Rule was promulgated in 1979 “to address the failure of the home insulation marketplace to provide essential pre-purchase information to consumers”; findings that sellers failed to disclose or exaggerated R‑values and exaggerated fuel savings; authority under the FTC Act. https://www.ftc.gov/system/files/documents/federal_register_notices/2018/10/r811001_r-value_rule_final_rule_fr_notice.pdf
  11. Federal Trade Commission. Labeling and Advertising of Home Insulation: Trade Regulation Rule, 70 Fed. Reg. 31258 (May 31, 2005), §V.E.1.b. Proposed chart at R‑11, 13, 19, 22, 24, 32, 40; final values adopted to match DOE recommendations; “Some of the proposed values, such as 24, 32, and 40, have not been included in the final rule because they do not appear in the DOE recommendations.” https://www.ftc.gov/sites/default/files/documents/federal_register_notices/labeling-and-advertising-home-insulation-trade-regulation-rule-16-cfr-part-460/050531labelingadvertisingofhomeinsulation.pdf
  12. U.S. Department of Energy. Energy Efficient Home Improvement Credit: Insulation and Air Sealing. “Minimum R‑value requirement to meet 2021 IECC” table by climate zone (CZ2: R49 attic, R13 or R0 + R10 CI wall; CZ3: R20 or R13 + R5 CI or R0 + R15 CI). https://www.energy.gov/cmei/buildings/articles/energy-efficient-home-improvement-credit-insulation-and-air-sealing
  13. North American Insulation Manufacturers Association (Insulation Institute). Louisiana: Summary of Key Residential Energy Code Requirements (N133, 04/25). “The 2021 International Residential Code (IRC) was adopted in Louisiana and went into effect on July 1, 2023.” “All of Louisiana is declared climate zone 2.” R402.1.3 Ceilings R‑38 / U-0.030; Wood Frame Wall R‑13 / U-0.082. insulationinstitute.org
  14. Federal Trade Commission. 16 CFR § 460.17 — Installer receipts. Coverage area, initial installed thickness, minimum settled thickness, R‑value, and number of bags for loose-fill. https://www.law.cornell.edu/cfr/text/16/460.17
